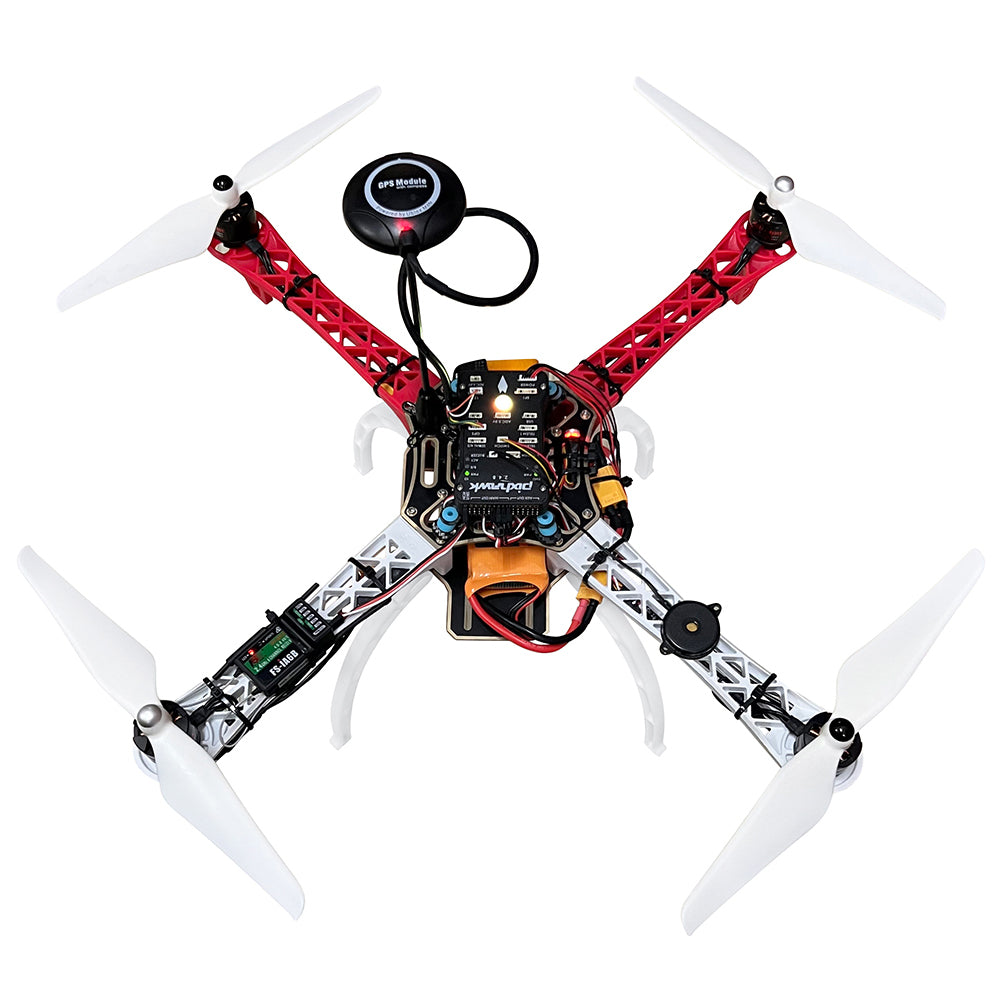

F450 Drone Kit to build, DIY 450mm Wheelbase 4-axis Multi-rotor Drone

F450 Drone Kit to build, DIY 450mm Wheelbase 4-axis Multi-rotor Drone

$395.99
$395.99
Sale Sold out
Shipping calculated at checkout.
Size
View full details
  • ๐˜๐จ๐ฎ๐ซ ๐Ÿ๐ฌ๐ญ ๐ƒ๐ˆ๐˜ ๐ƒ๐ซ๐จ๐ง๐ž - F450 is the best DIY quadcopter drone for both beginners to learn the basics and experts to conduct research or secondary development.

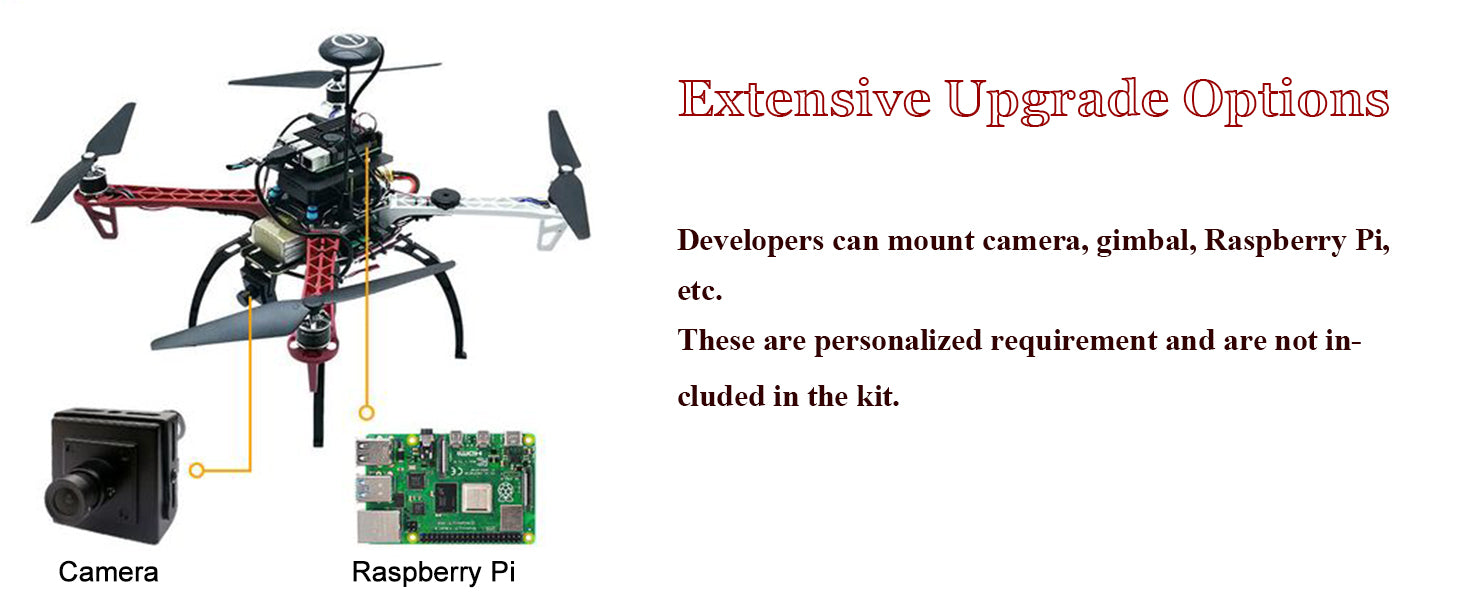

  • ๐Œ๐จ๐ซ๐ž ๐‚๐š๐ฉ๐š๐œ๐ข๐ญ๐ฒ & ๐Œ๐จ๐ซ๐ž ๐’๐ฉ๐š๐œ๐ž - Wheelbase: 450mm, Maximum take-off weight: approx. 1.8 kg. It has enough space to connect flight control, Raspberry Pi, camera, sensors, etc.
  • ๐๐ข๐ฑ๐ก๐š๐ฐ๐ค ๐ˆ๐ง๐œ๐ฅ๐ฎ๐๐ž๐ - It can be used as a master controller for fixed-wing, multi-rotor, helicopter, boat, car, etc. By connecting relevant components, it allows for automated driving and customization.

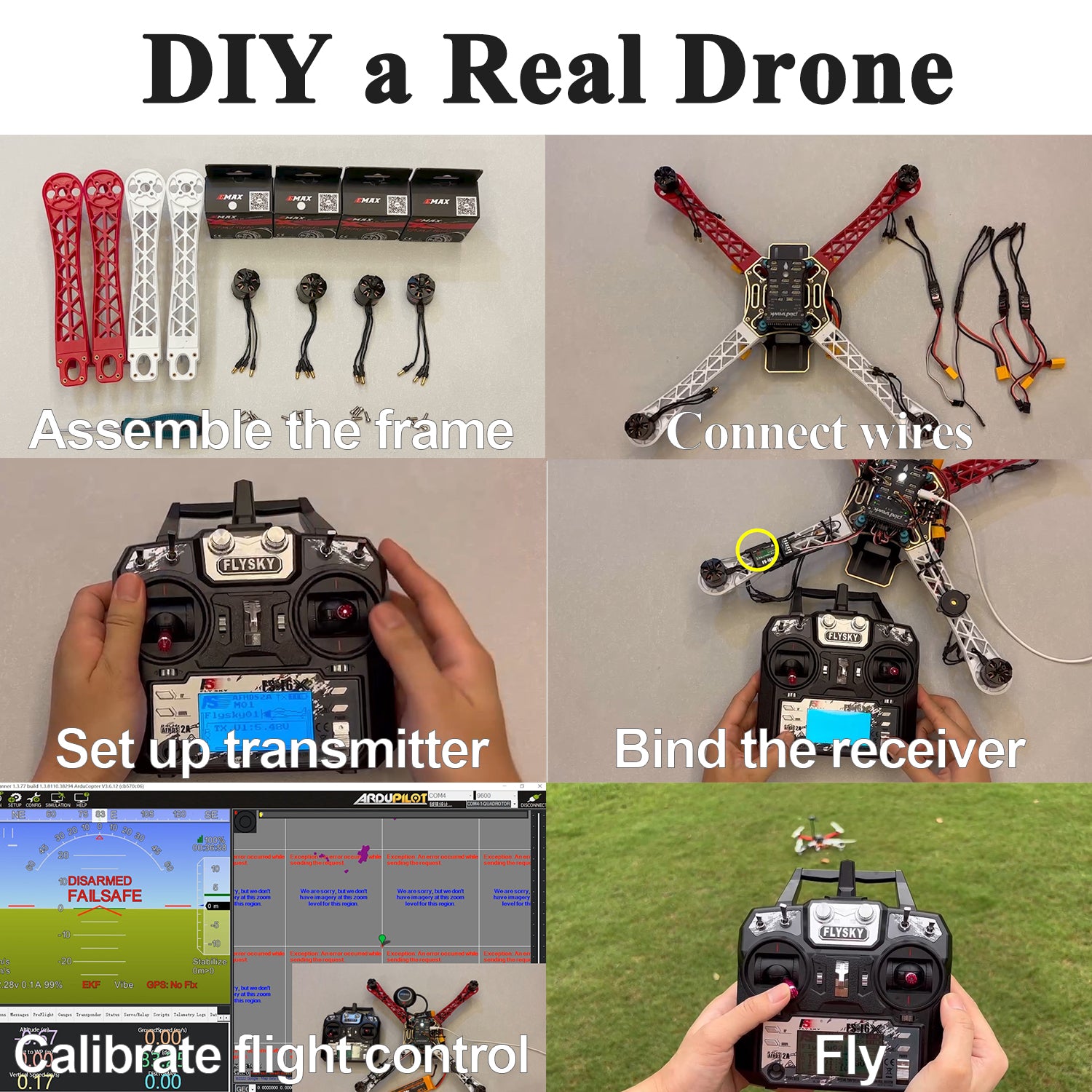

  • ๐๐ž๐ฐ๐›๐ข๐ž ๐…๐ซ๐ข๐ž๐ง๐๐ฅ๐ฒ - We have prepared a quick start guide for new players that will assist you with the assembly and calibration of a DIY drone. Please contact us if you need it.
  • ๐๐ซ๐š๐ง๐๐ž๐ ๐๐š๐ซ๐ญ๐ฌ - We use parts from brands for stable and reliable quality. Free replacement for quality problems within 3 months.
  • ๐ƒ๐ข๐Ÿ๐Ÿ๐ž๐ซ๐ž๐ง๐ญ ๐Š๐ข๐ญ๐ฌ ๐…๐จ๐ซ ๐ƒ๐ข๐Ÿ๐Ÿ๐ž๐ซ๐ž๐ง๐ญ ๐๐ž๐ž๐๐ฌ - Depending on the parts included in the package, we have set up several packages for users to choose from.
  • ๐๐ž๐œ๐š๐ฎ๐ฌ๐ž ๐จ๐Ÿ ๐ญ๐ก๐ž ๐ฅ๐š๐ซ๐ ๐ž ๐๐ข๐Ÿ๐Ÿ๐ž๐ซ๐ž๐ง๐œ๐ž ๐ข๐ง ๐ฌ๐ก๐ข๐ฉ๐ฉ๐ข๐ง๐  ๐œ๐จ๐ฌ๐ญ๐ฌ ๐š๐ง๐ ๐ญ๐š๐ซ๐ข๐Ÿ๐Ÿ๐ฌ, ๐ฉ๐ซ๐ข๐œ๐ž ๐๐ข๐ฌ๐œ๐จ๐ฎ๐ง๐ญ๐ฌ ๐œ๐š๐ง ๐›๐ž ๐š๐ฉ๐ฉ๐ฅ๐ข๐ž๐ ๐ข๐ง ๐ฌ๐จ๐ฆ๐ž ๐œ๐จ๐ฎ๐ง๐ญ๐ซ๐ข๐ž๐ฌ, ๐ฌ๐จ ๐ฉ๐ฅ๐ž๐š๐ฌ๐ž ๐ข๐ง๐ช๐ฎ๐ข๐ซ๐ž ๐ฌ๐ž๐ฉ๐š๐ซ๐š๐ญ๐ž๐ฅ๐ฒ.

Specification

Wheelbase: 450 mm

Max take-off weight: approx. 1.8 kg

Flight time: 10-20 minutes

Remote distance: >= 500 meters (FS-I6X+ IA6B)

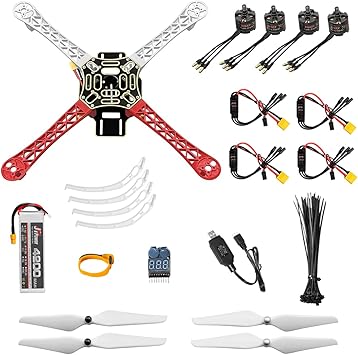

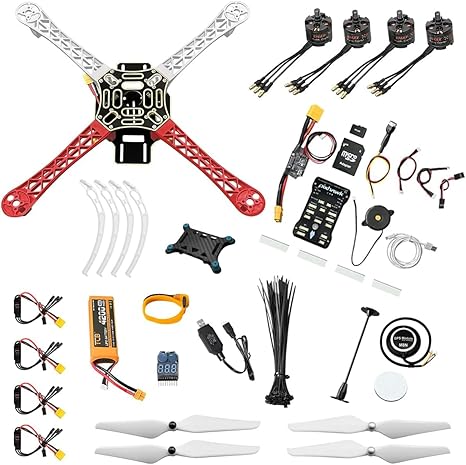

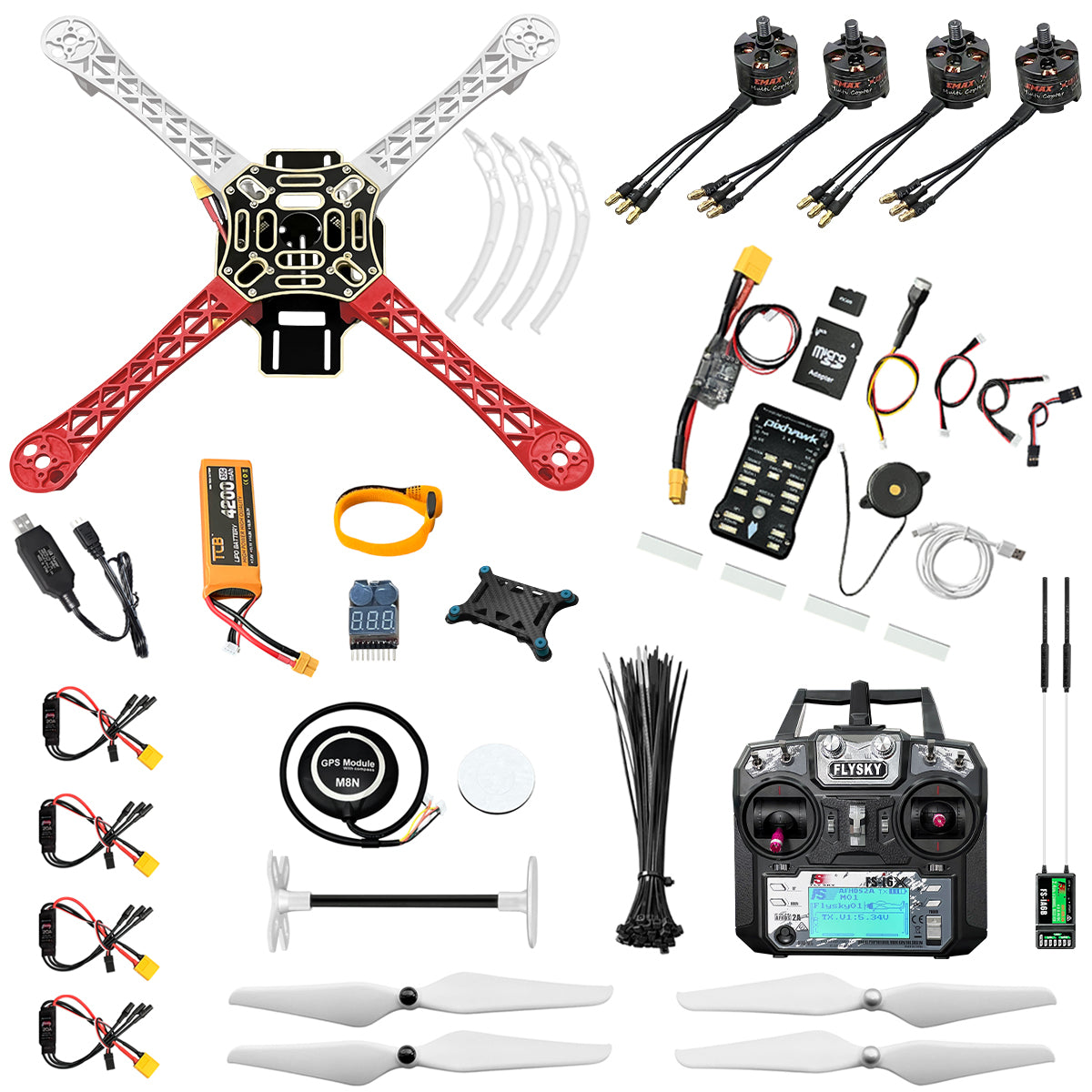

Packing List of Kit A:

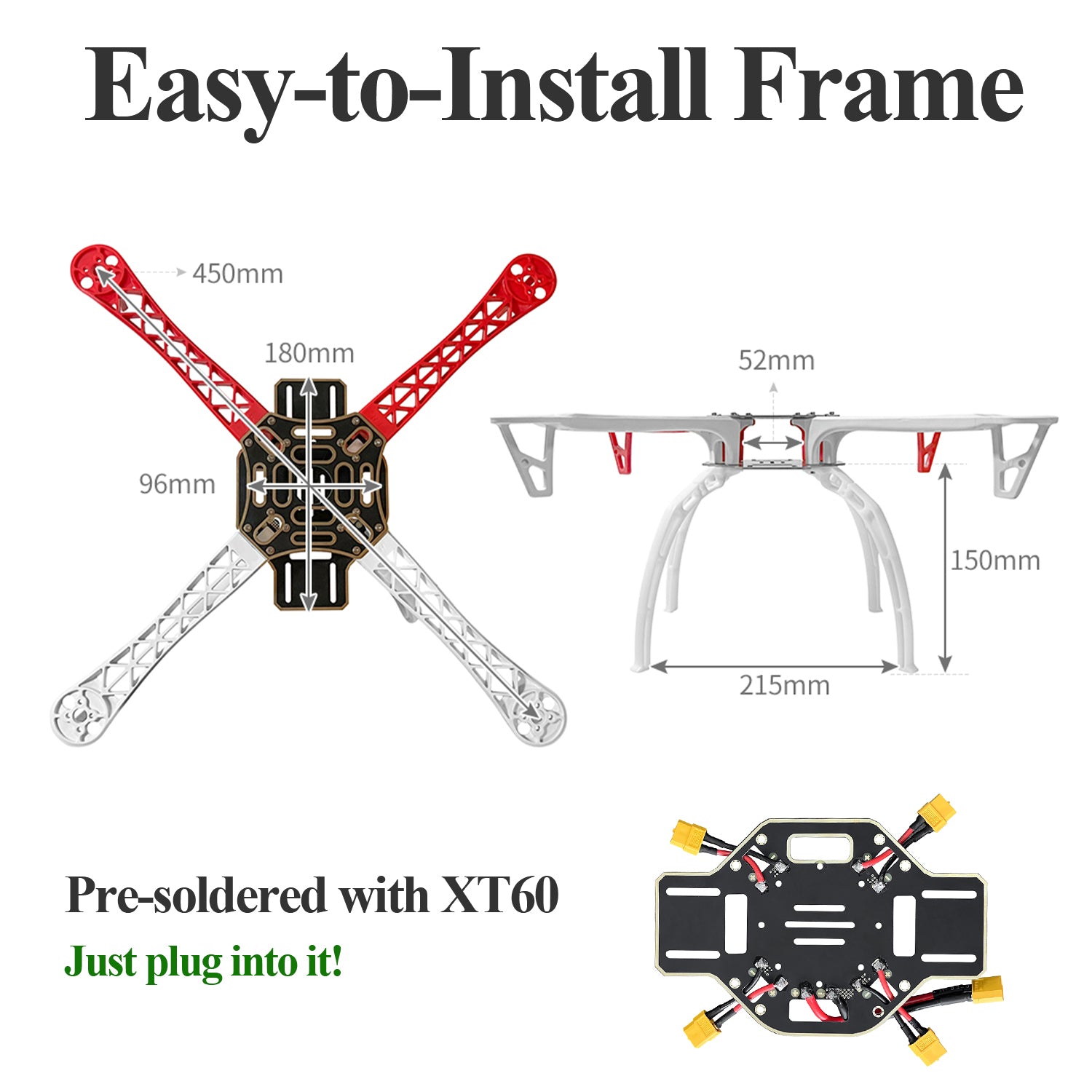

Drone frame: F450 (pre-soldered), landing skid

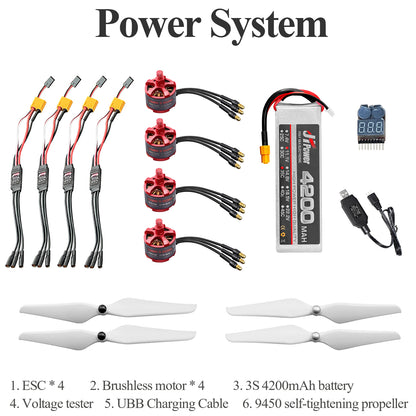

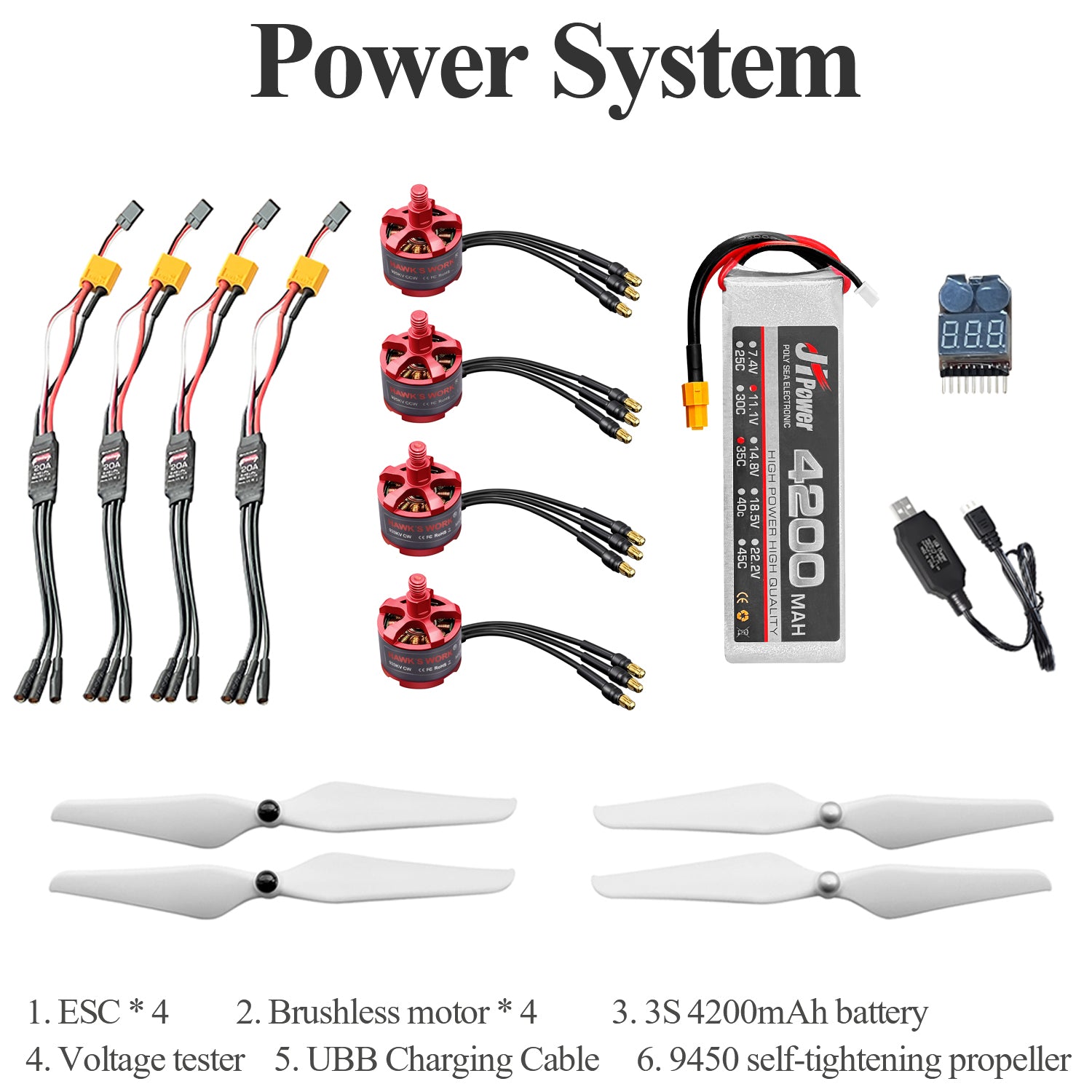

Power system: brushless motor 2212 * 4, 20A ESC * 4, propeller 9450 * 4, lipo battery 4200 mAh

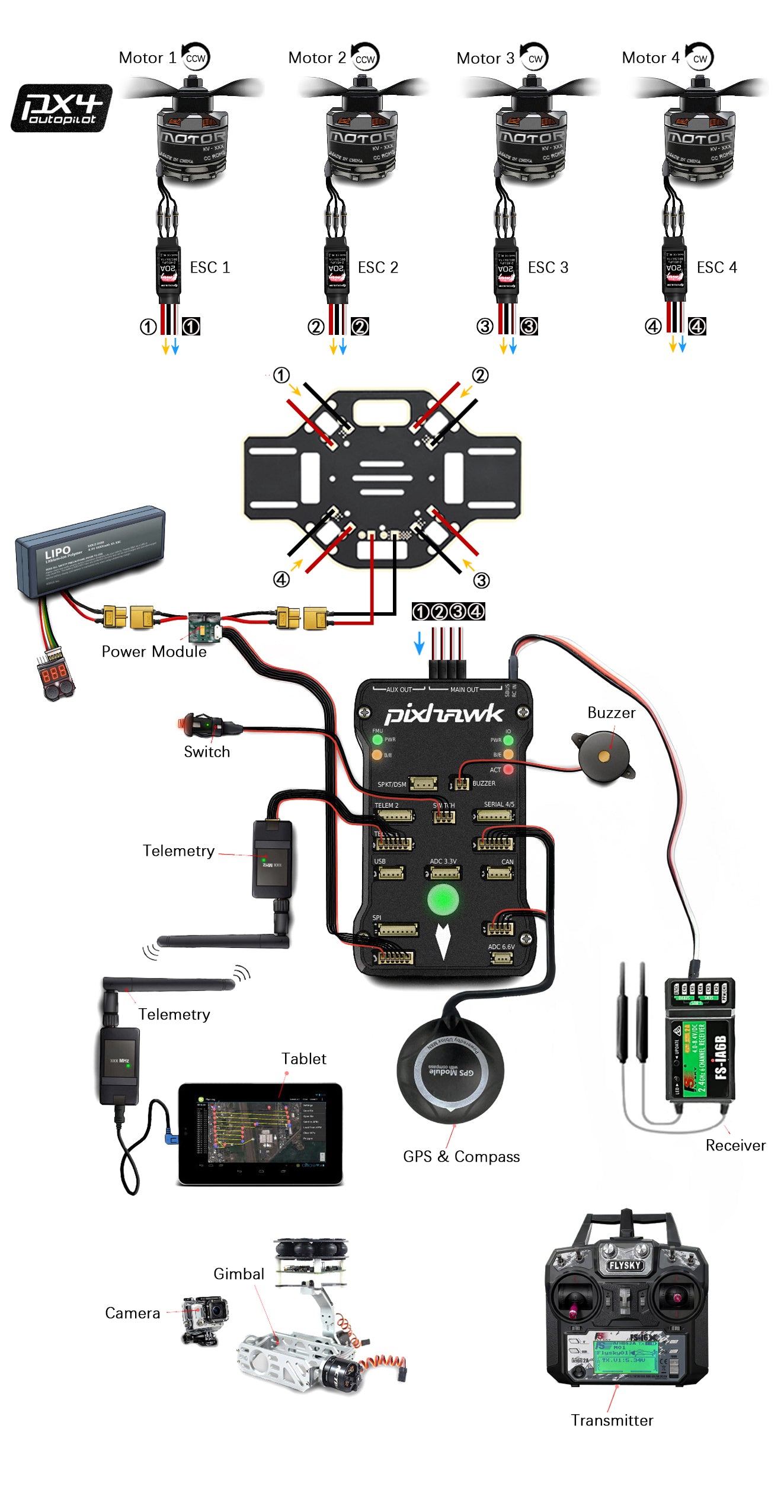

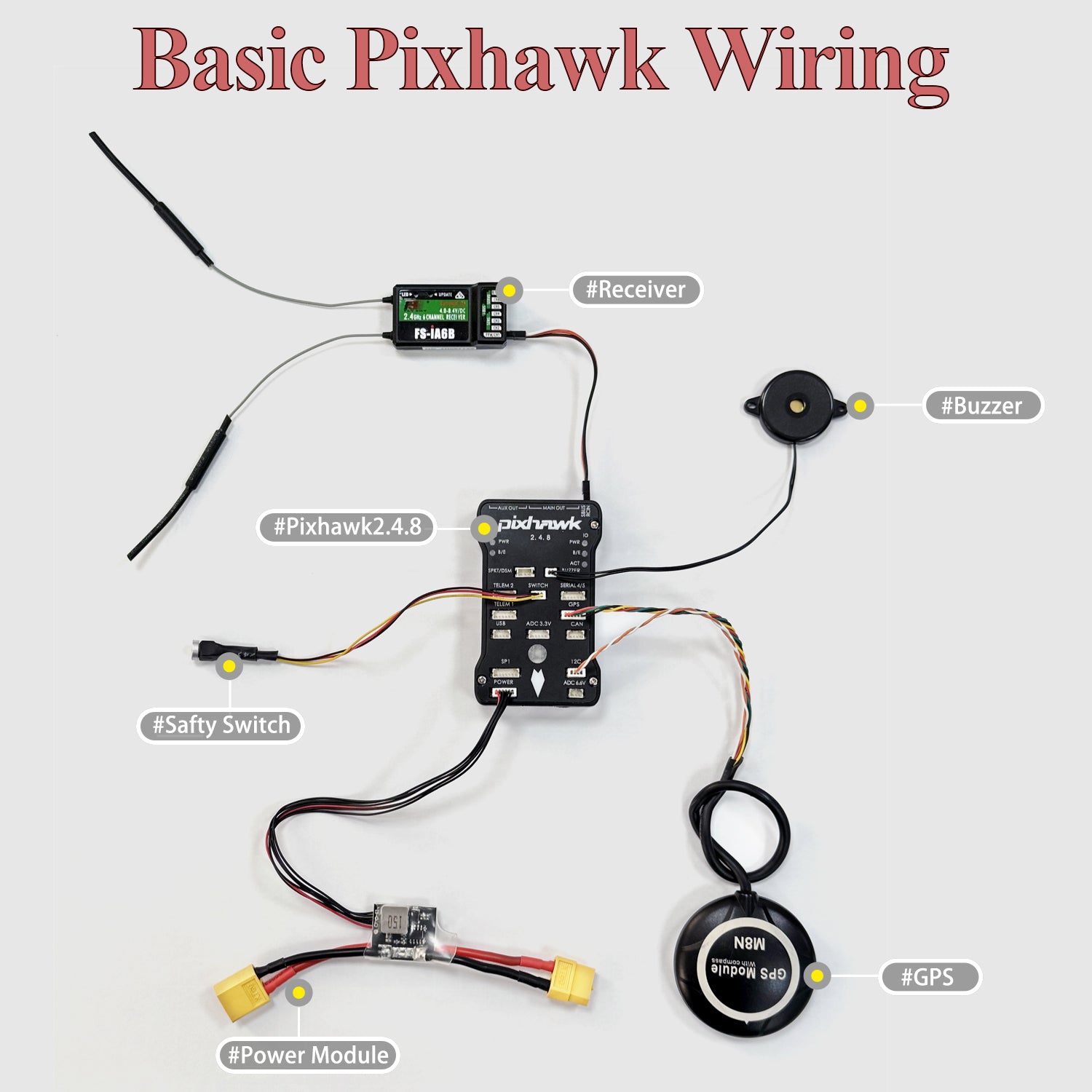

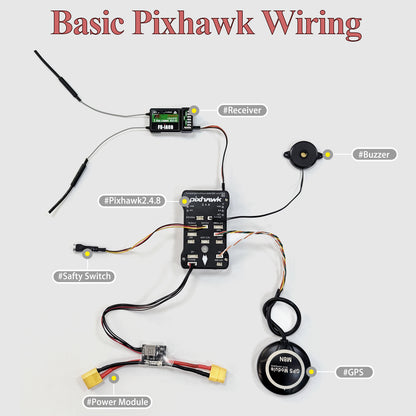

Flight control system: Pixhawk 2.4.8, M8N GPS, power module, vibration dampening plate, GPS mounting bracket

RC system: FS-i6X transmitter (10 CH), FS-iA6B receiver

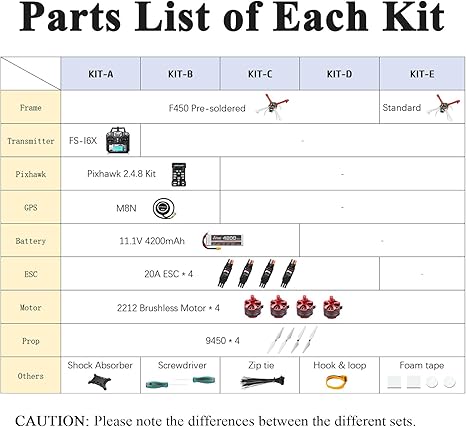

How do I choose the right kit?

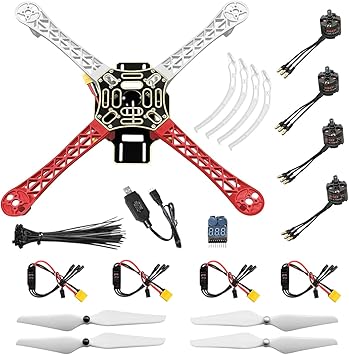

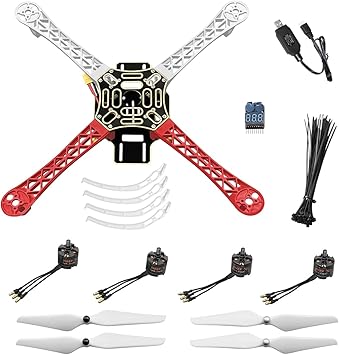

Kit B = Kit A - RC System, Kit C = Kit B - Flight Control System, Kit D = Kit C - Battery, Kit E = Kit D - ESC * 4

Cautions:

Itโ€™s drone kit to build. It may take days for a novice to complete the assembly and calibrate.

FAQ

1. Can I do the assembly andflying on my own as a regular hobbyist?

Yes. Almost all users can complete the assembly, calibration and basic flight of the drone with the manual and videos we provide.

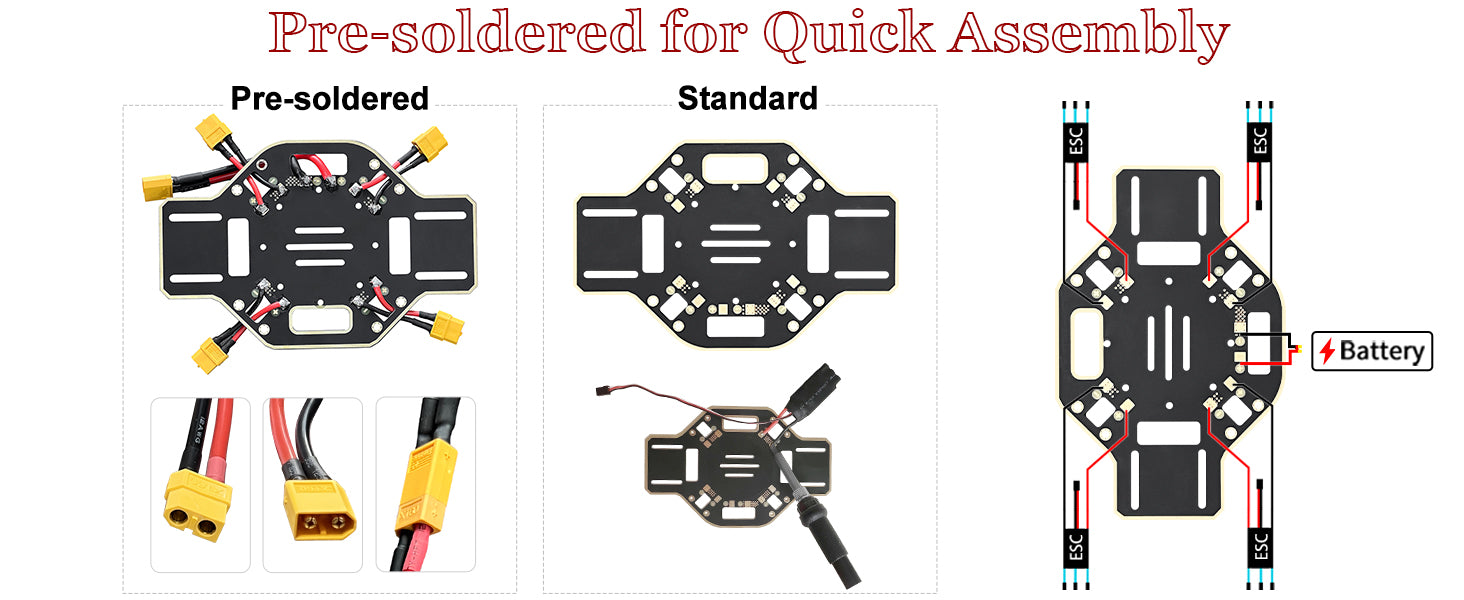

2. If I choose the pre-solderedversion, do I still need to use a soldering iron?

No. The pre-soldered boards already have the plugs soldered on, you just need to insert the plugs.

3. Do I need to use a computer forcalibration?

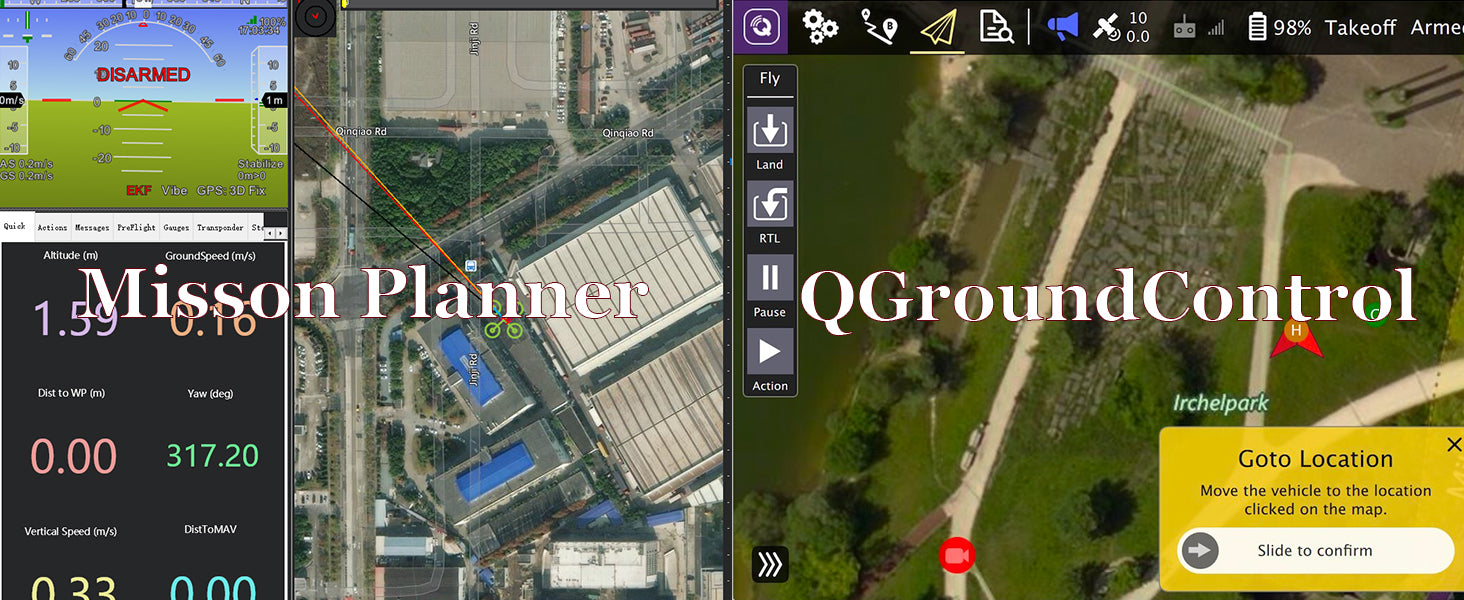

Yes, you need to install Mission Planner on your computer and follow the instructions to complete the calibration.

4. Which kit should I choose?

If you're new to DIY drone and don't have a transmitter, we recommend Kit A. If you already have some of the parts, you just have to buy as many as you need.
