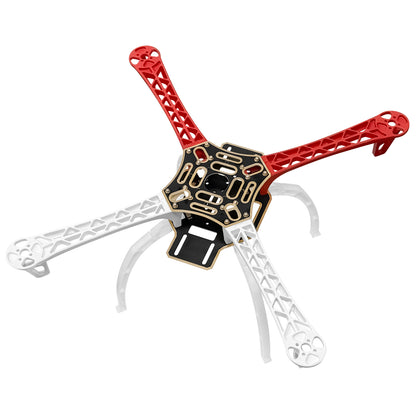

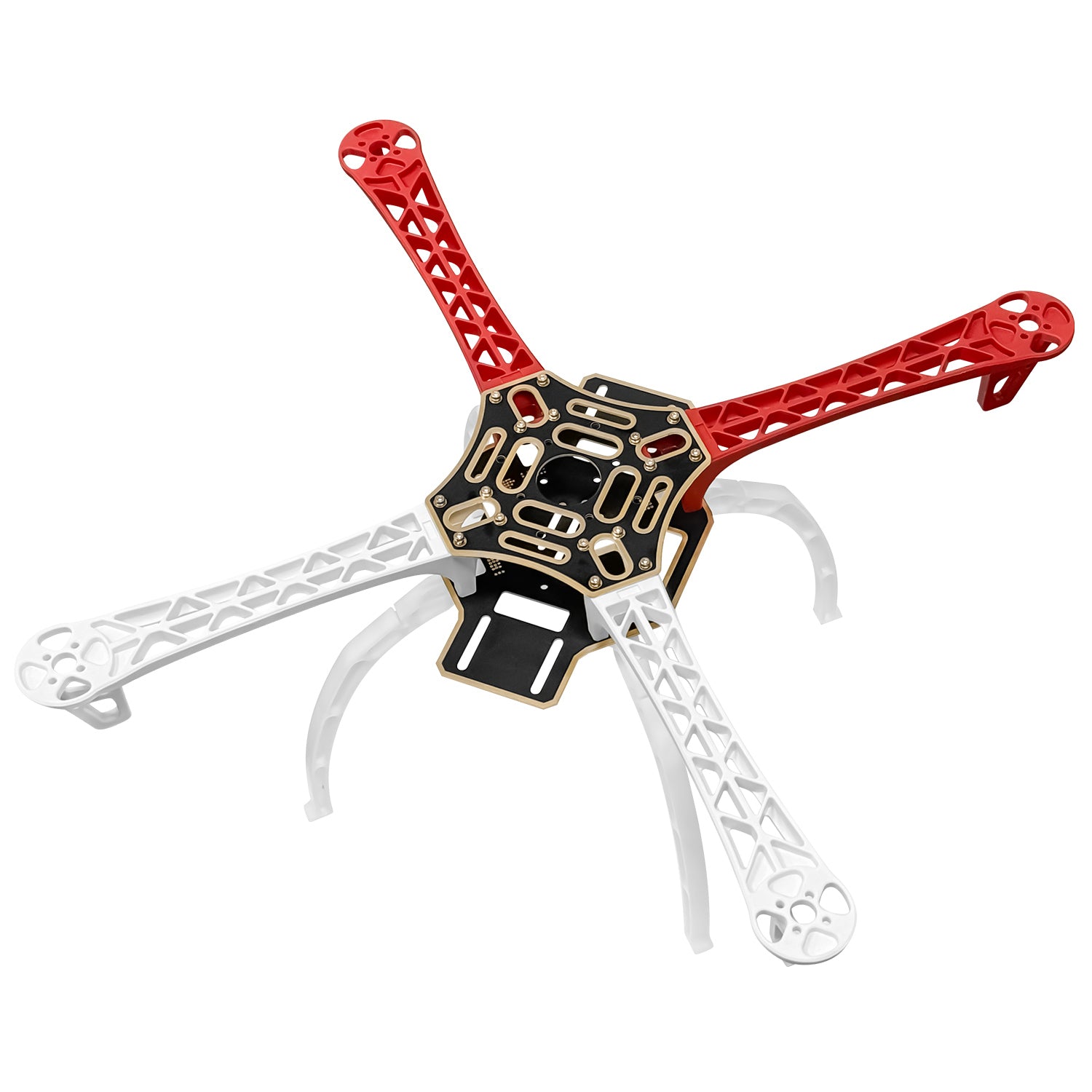

F450 Drone Frame, 450mm Wheelbase Quadcopter Frame Kit with Landing Skid Gear

F450 Drone Frame, 450mm Wheelbase Quadcopter Frame Kit with Landing Skid Gear

$19.99
$19.99
Sale Sold out
Shipping calculated at checkout.
尺寸
View full details

  • 𝐘𝐨𝐮𝐫 𝟏𝐬𝐭 𝐃𝐈𝐘 𝐃𝐫𝐨𝐧𝐞 𝐅𝐫𝐚𝐦𝐞 - F450 is the best educational quadcopter drone frame for both beginners to learn the basics and experts to conduct research and development.

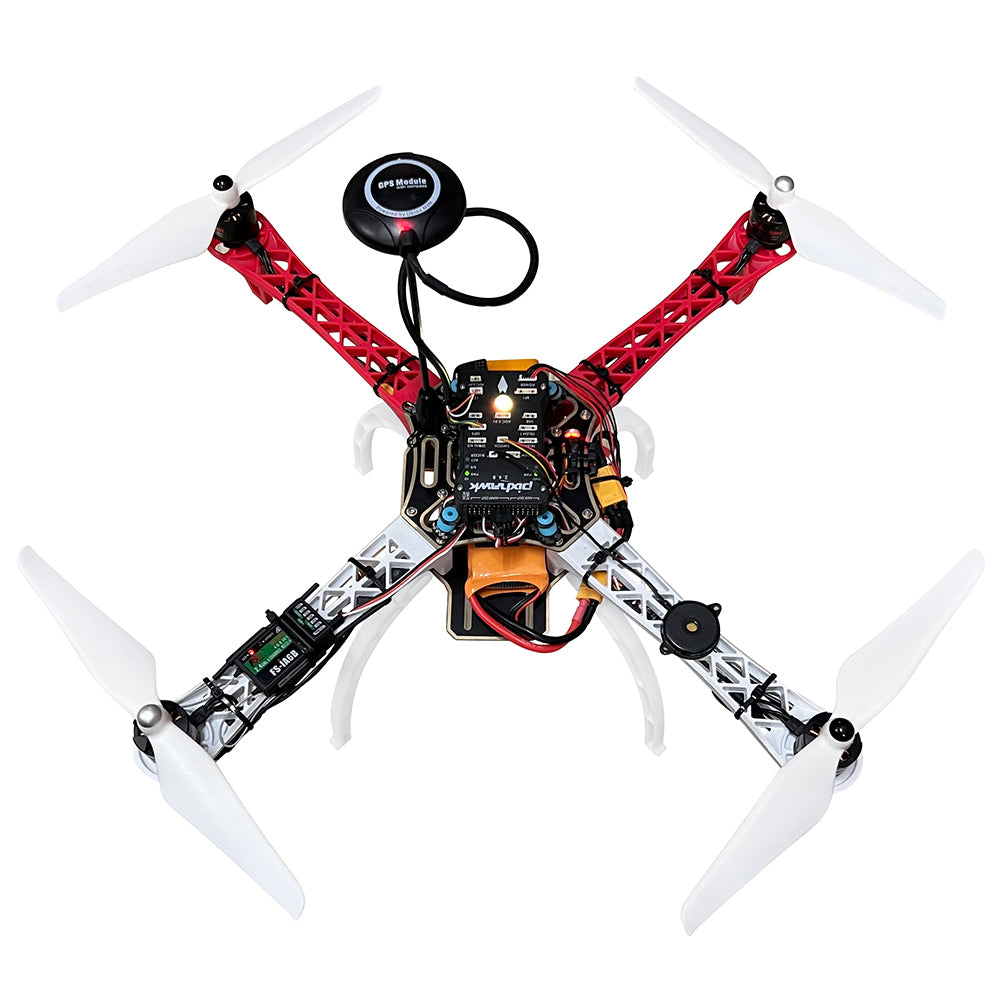

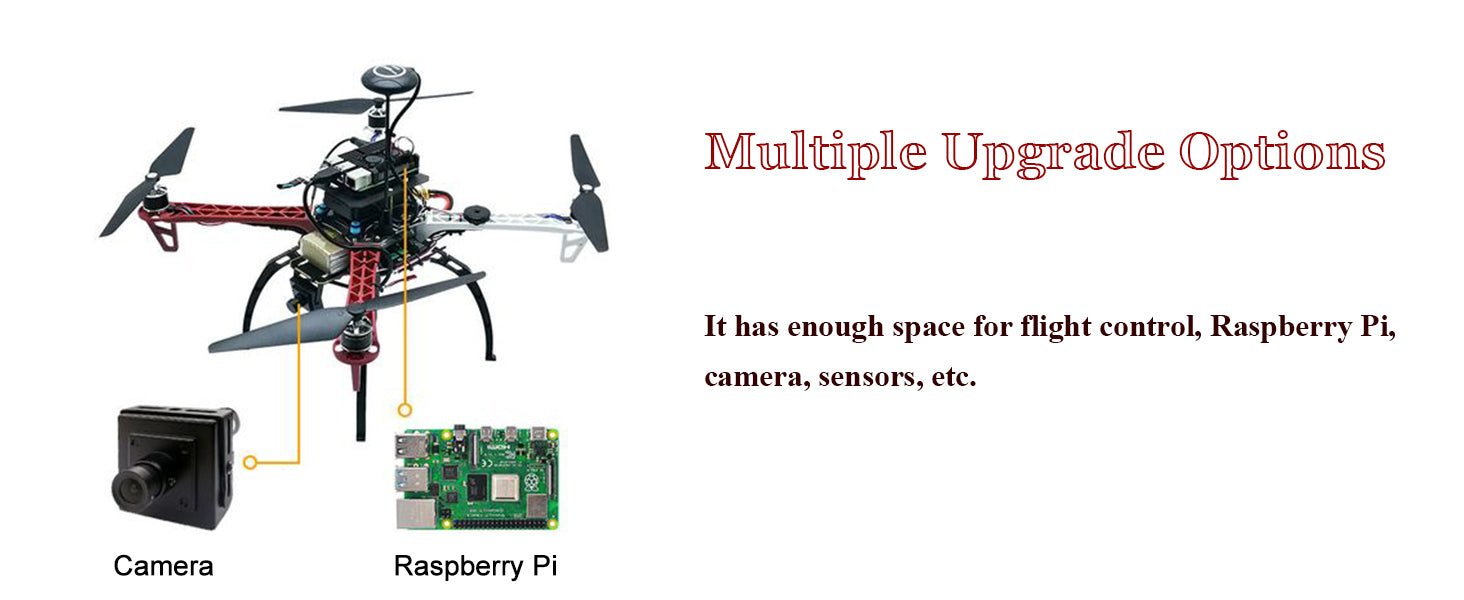

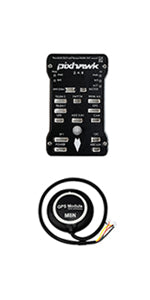

  • 𝐌𝐨𝐫𝐞 𝐂𝐚𝐩𝐚𝐜𝐢𝐭𝐲 & 𝐌𝐨𝐫𝐞 𝐒𝐩𝐚𝐜𝐞 - Wheelbase: 450mm, Maximum take-off weight: approx. 1.8kg. It has enough space to connect flight control, Raspberry Pi, camera, sensors, etc.
  • 𝐔𝐥𝐭𝐫𝐚 𝐇𝐢𝐠𝐡 𝐒𝐭𝐫𝐞𝐧𝐠𝐭𝐡 𝐌𝐚𝐭𝐞𝐫𝐢𝐚𝐥 – Made of quality glass fiber and polyamide nylon, the frame is light and durable to falling and impact.
  • 𝐁𝐮𝐢𝐥𝐭-𝐢𝐧 𝐏𝐂𝐁 - Simply soldering the ESC to the board greatly reduces the complexity of wiring and makes the circuit more stable and reliable.
  • 𝐒𝐭𝐚𝐛𝐥𝐞 𝐅𝐫𝐚𝐦𝐞 - Pre-threaded brass sleeves for all of the frame bolts.

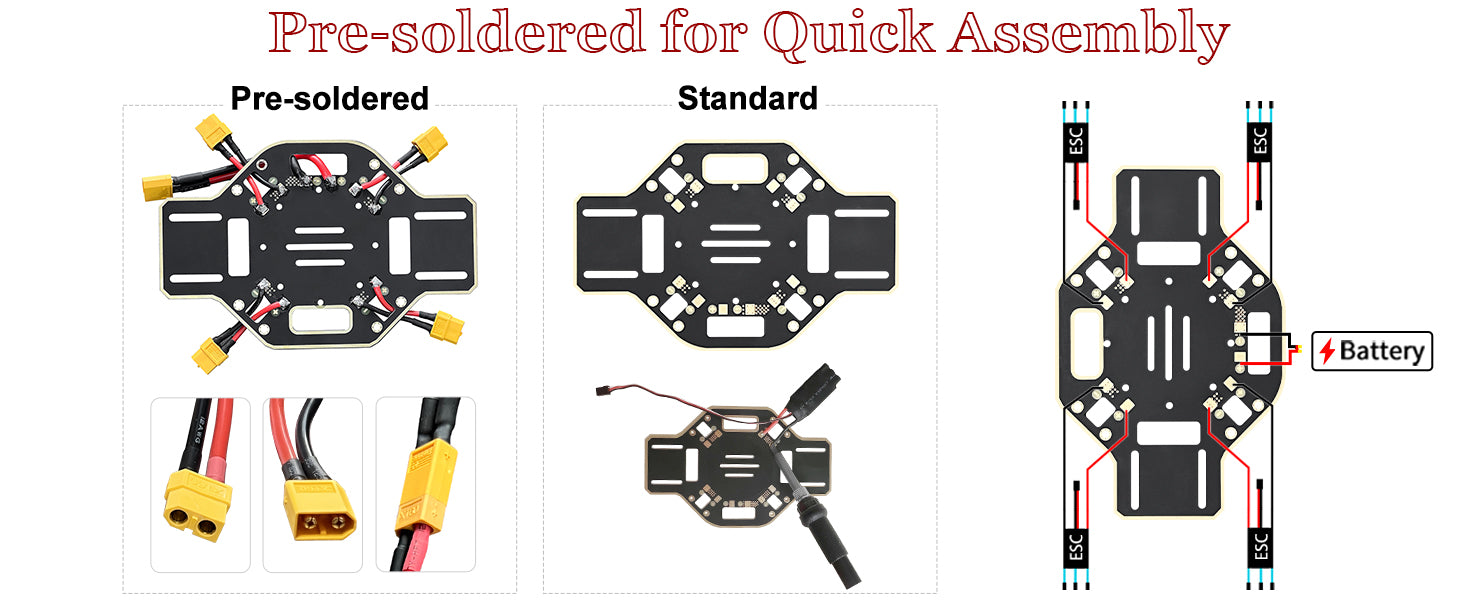

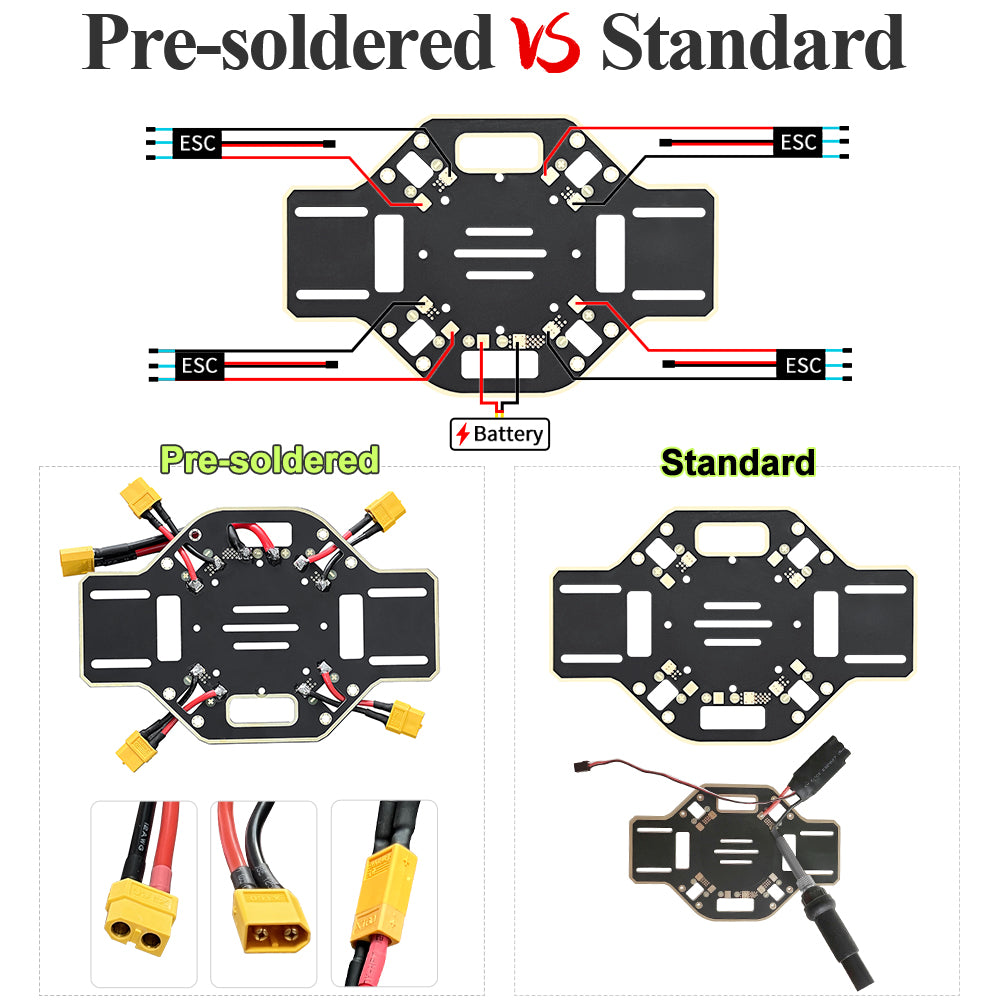

  • 𝟐 𝐂𝐡𝐨𝐢𝐜𝐞𝐬 - We offer 2 versions for users to choose from: Standard and Pre-soldered. If you don't want to solder it yourself, go straight to the pre-soldered option, you just plug in the XT60 ESC to connect it.

Specifications

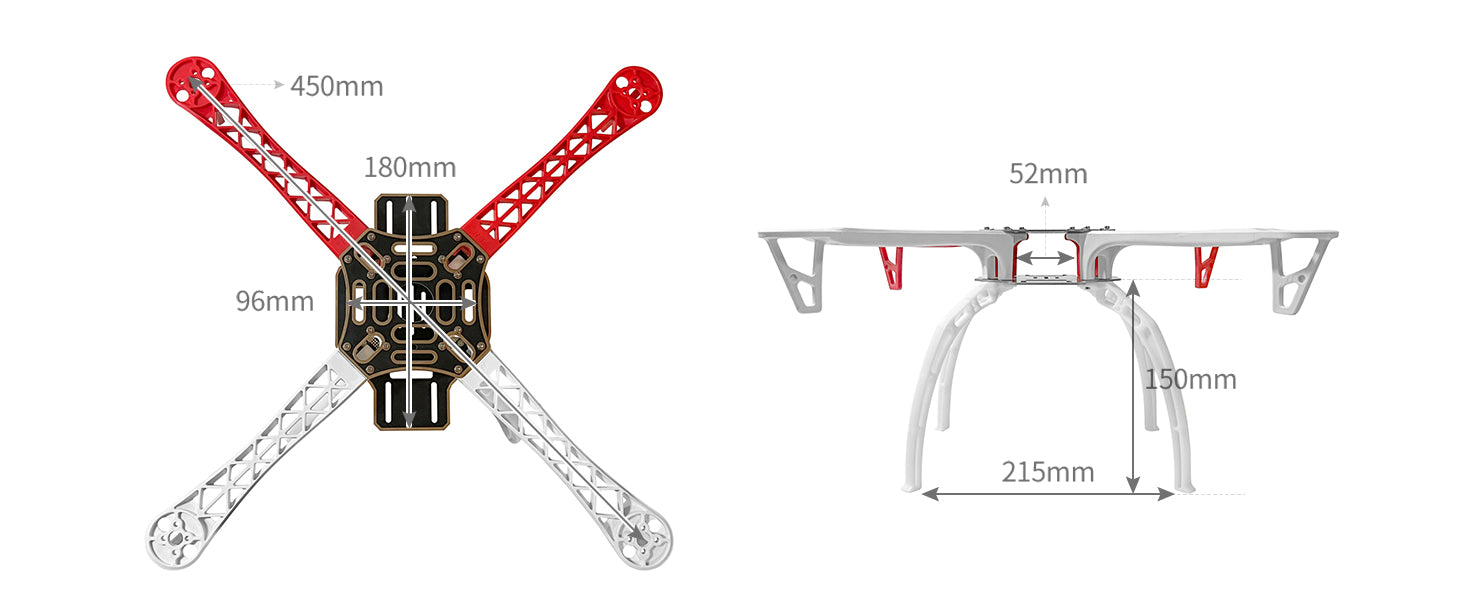

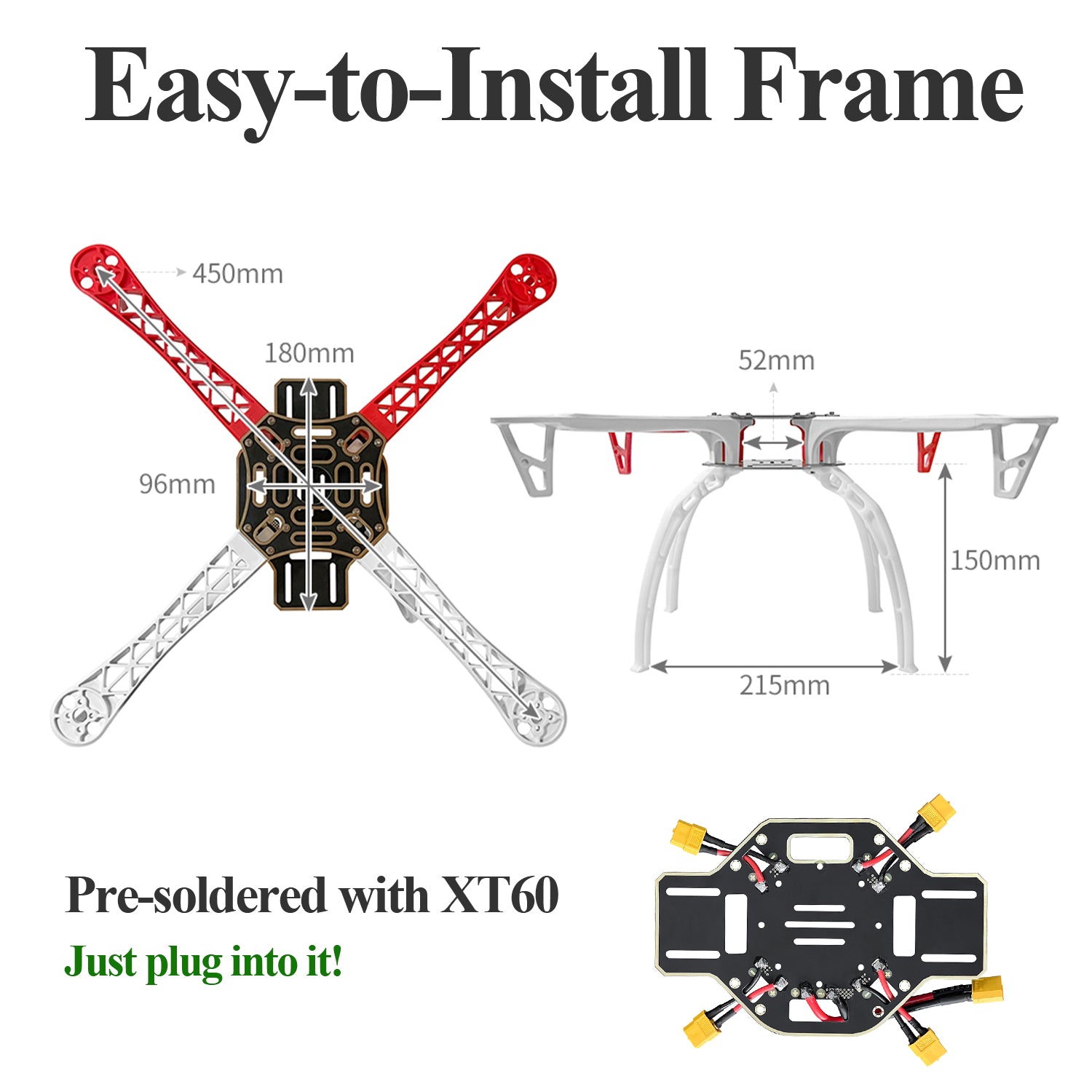

Wheelbase: 450 mm

Frame net weight: 280g

Max take-off weight: approx. 1.8kg

Material: glass fiber and polyamide nylon

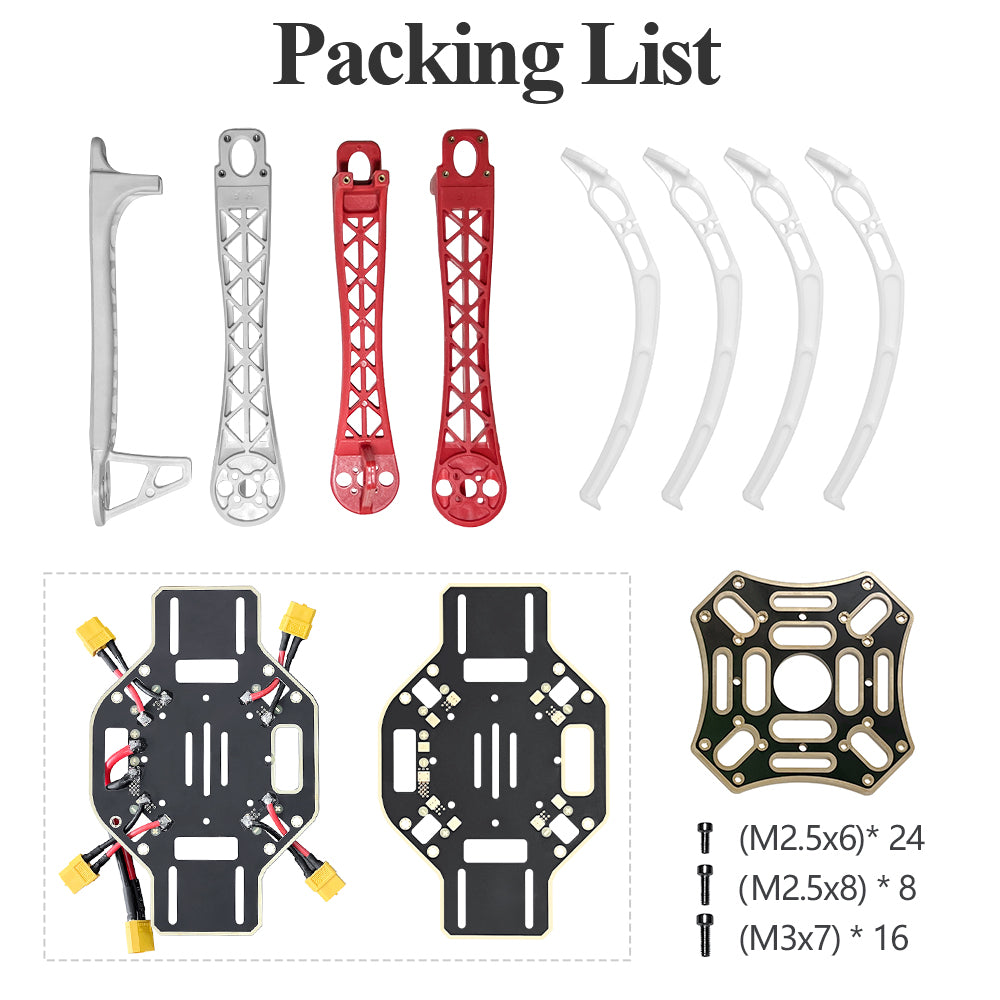

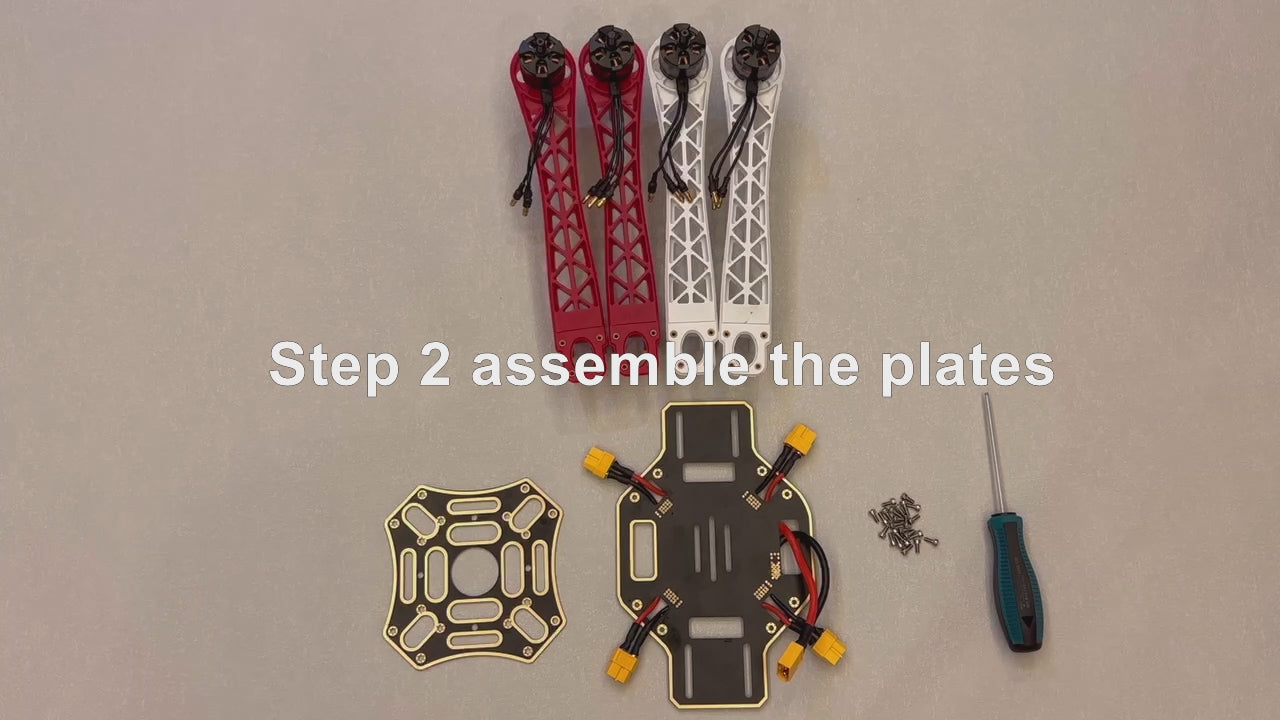

Packing list: Arm * 4 (red*2, white*2), plate * 2 (top plate *1, bottom plate*1), landing skid * 4, M3 + M2.5 screws, instruction in English

Recommended parts: Brushless motor:

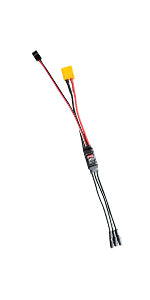

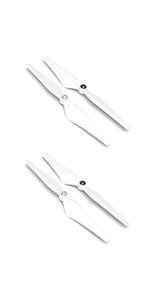

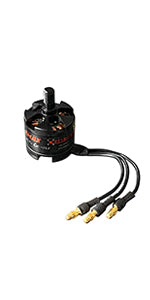

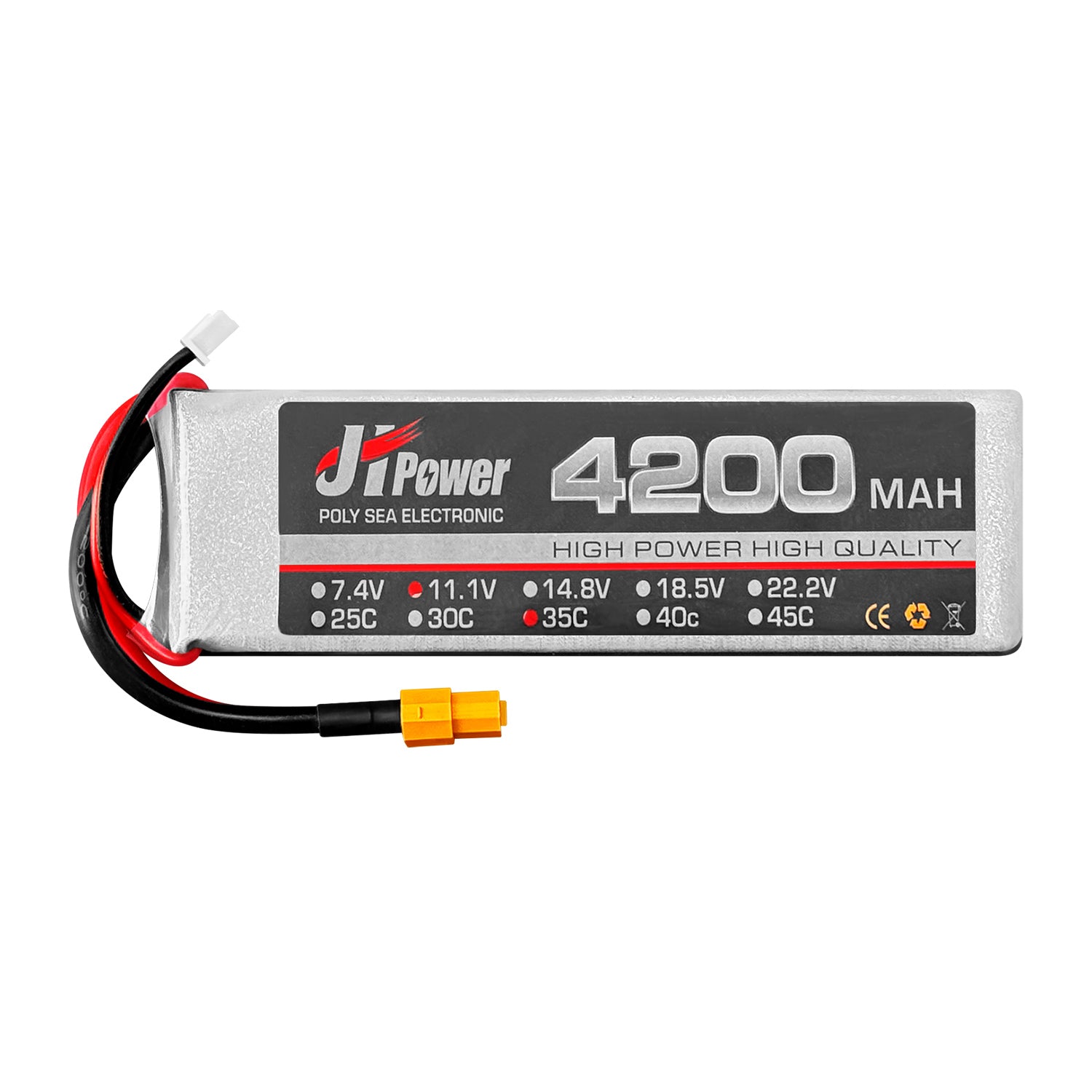

2208/2212/2213/2216 800-1100kv, ESC: 15~30A, liPo battery: 3-4S 1800-4500mAh, propeller: 8045/9450/1045

FAQ

1. If I choose the pre-solderedversion, do I still need to use a soldering iron?

No. The pre-soldered boards already have the plugs soldered on, you just need to insert the XT60 plugs with ESCs.

2. Where can I find the video andinstructions?

You can find the instructions and videos inside the package.

Note: Both the videos and instructions are in English.

3. Does it contain the requiredscrews?

It contains all the required screws, including 8pcs M3*7 (for mounting the motor), 24pcs M2.5*6 (for fixing the arm), 8pcs M2.5*8 (for mounting the bracket).

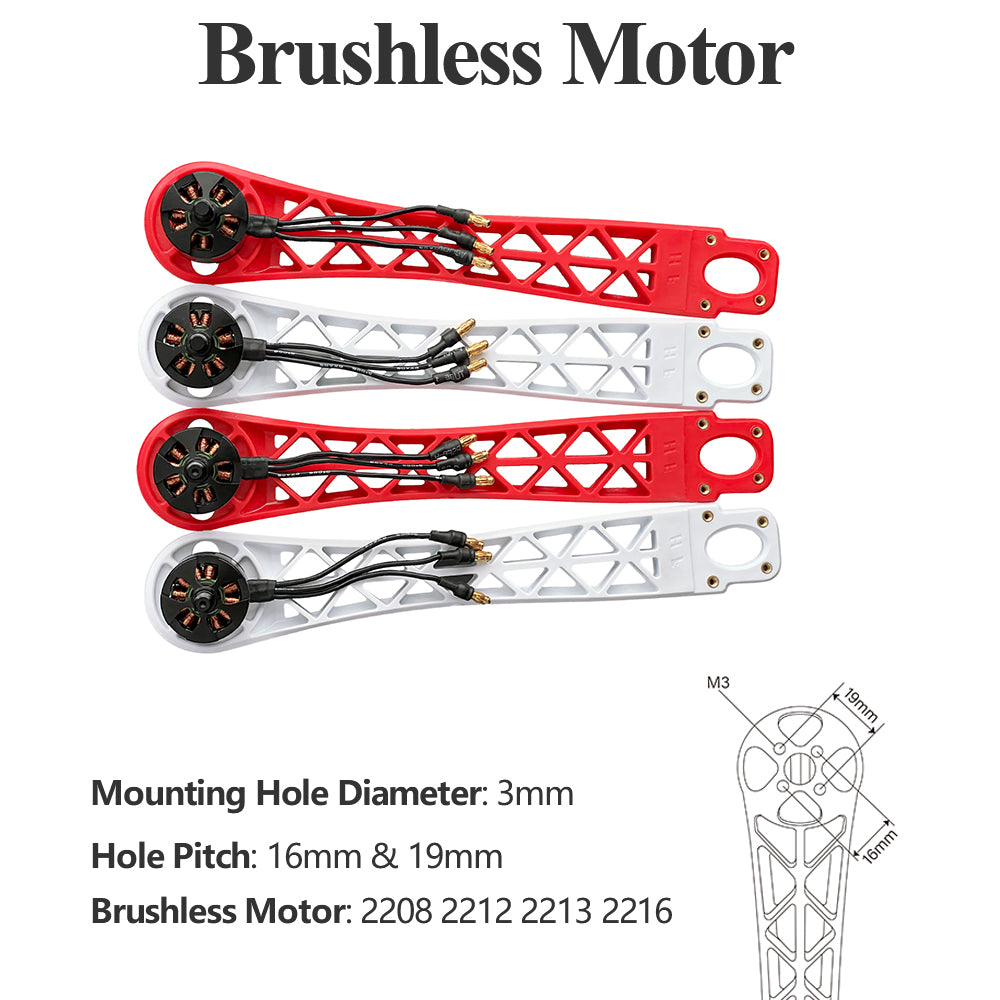

4. What kind of motor does itneed?

It requires a motor hole spacing of 16mm and 19mm, see pictures. This rack fits most 22 series brushless motors.
