How to use a power module to monitor battery voltage?

1. MENU

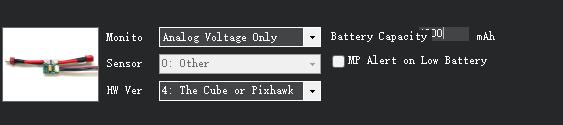

  • Setup – Optional Hardware - Battery Monitor

2. Select parameters

  • Monito: Analog Voltage Only


    Sensor: 0: Other


    HWVer: 4: The Cube or Pixhawk


    Battery Capacity: 4200 mAh

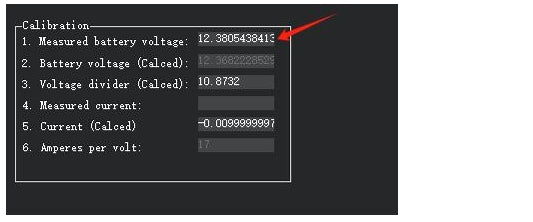

3. Measure battery voltage and input it


  • Measure the actual voltage of the battery using a voltage tester and input the voltageinto this blank.

4. Power off Pixhawk and restart

  • The Pixhawk can read the correct battery voltage now.
