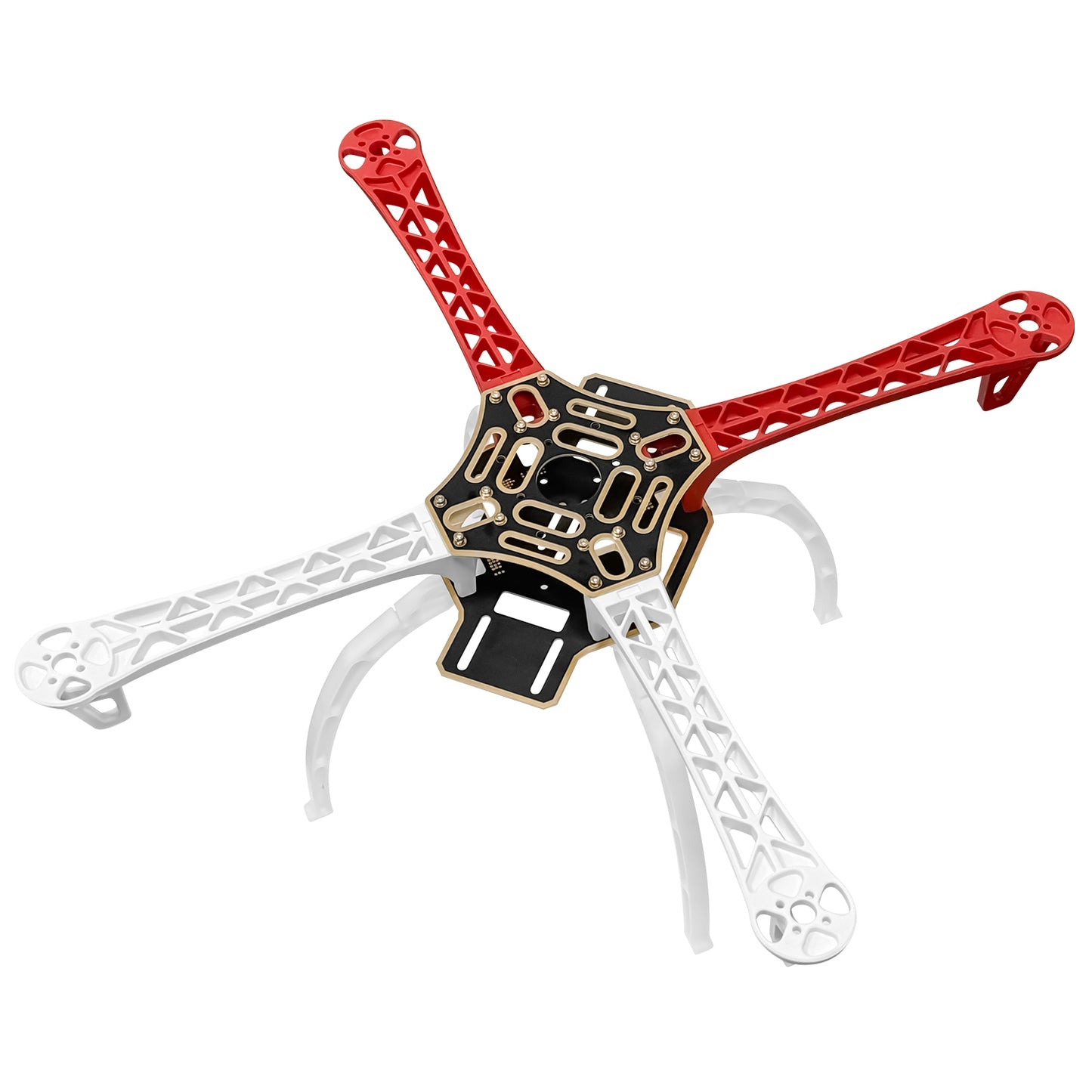

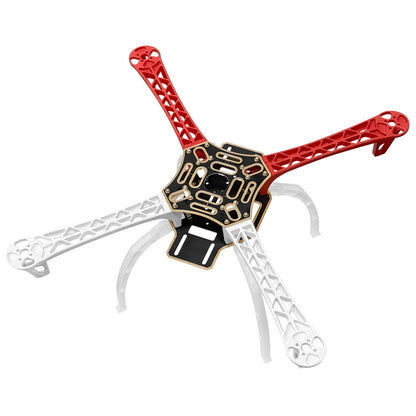

F450 ドローン フレーム、450mm ホイールベース クアッドコプター フレーム キット (ランディング スキッド ギア付き)
F450 ドローン フレーム、450mm ホイールベース クアッドコプター フレーム キット (ランディング スキッド ギア付き)
受取状況を読み込めませんでした
共有

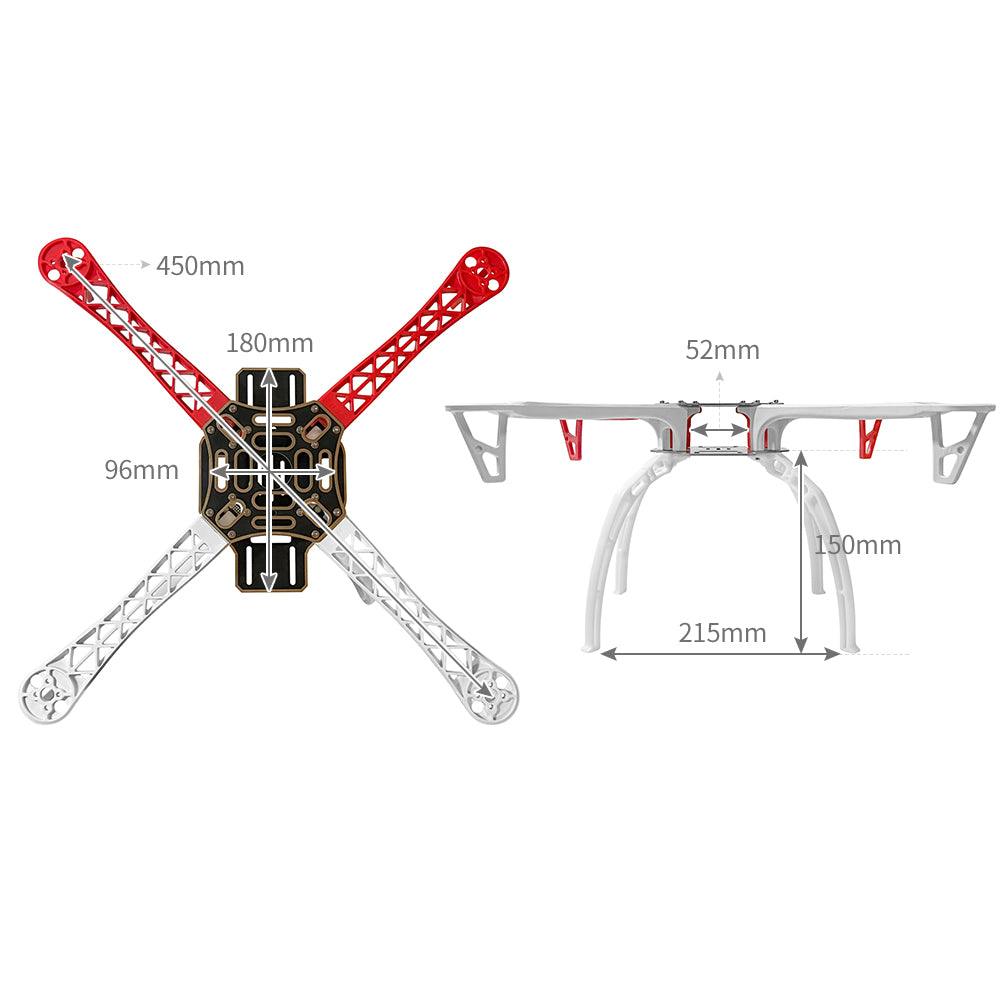

ホイールベース:450mm

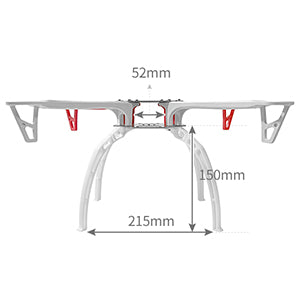

ランディングスキッド高さ: 150 mm
フレーム重量: 280g (オリジナル)、300g (はんだ付け済み)

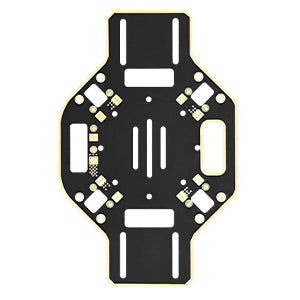

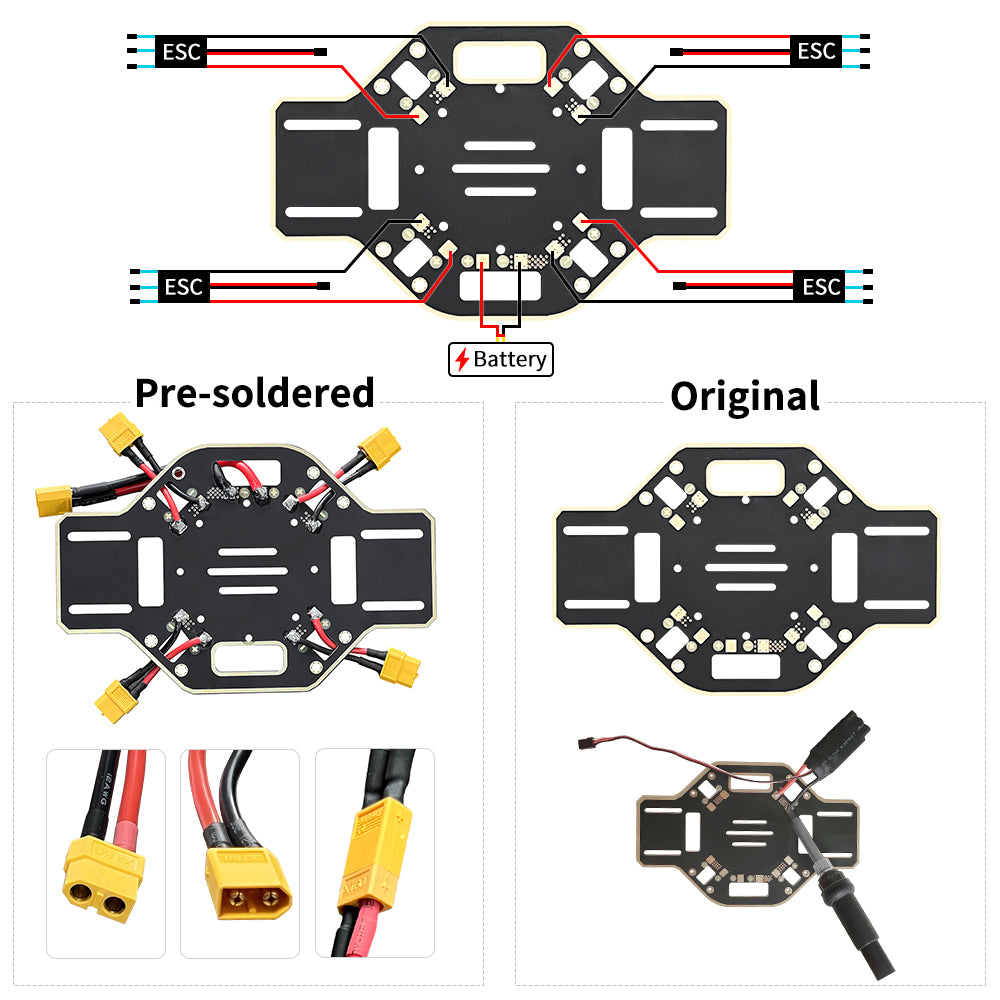

半田付け済みコネクタ: 電源入力用 XT60 * 1、ESC 用 XT60 * 4
Specifications
Frame net weight: 280g
Max take-off weight: approx. 1.8kg
Material: glass fiber and polyamide nylon

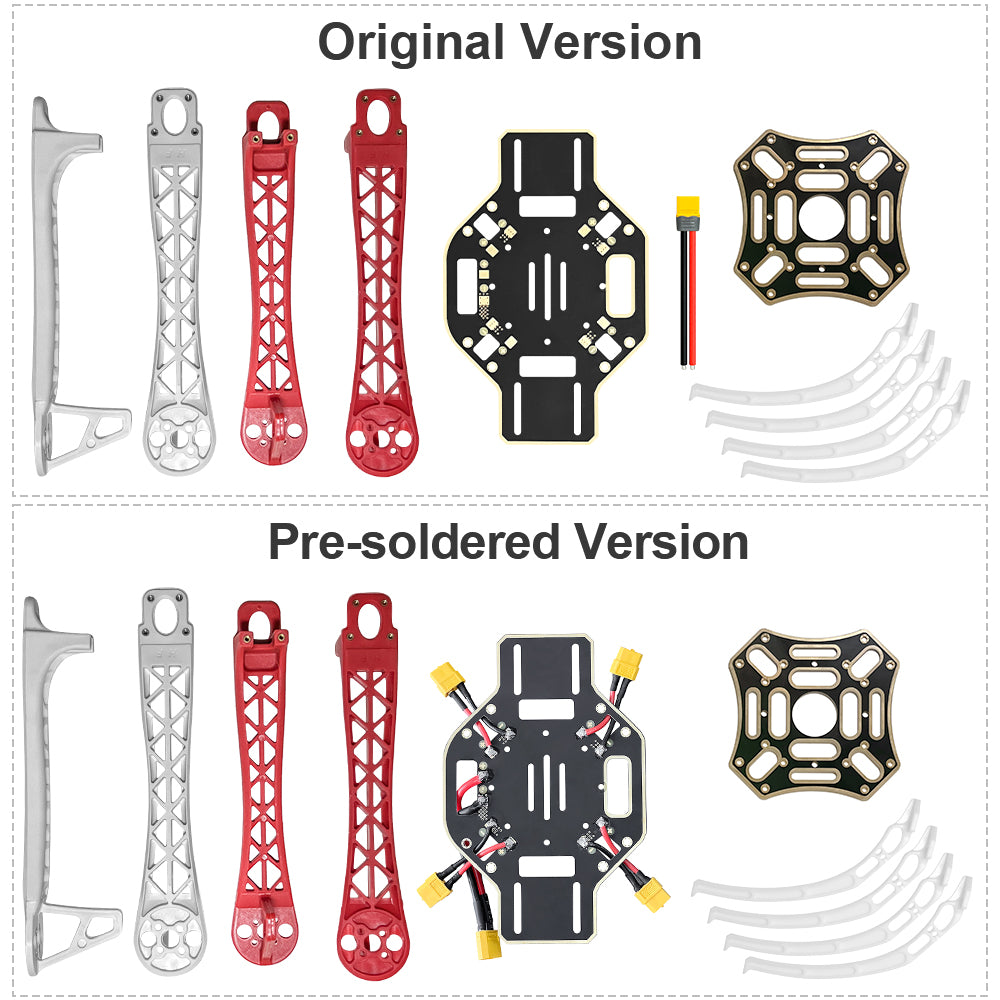

Packing list: Arm * 4 (red*2, white*2), plate * 2 (top plate *1, bottom plate*1), landing skid * 4, M3 + M2.5 screws, instruction in English

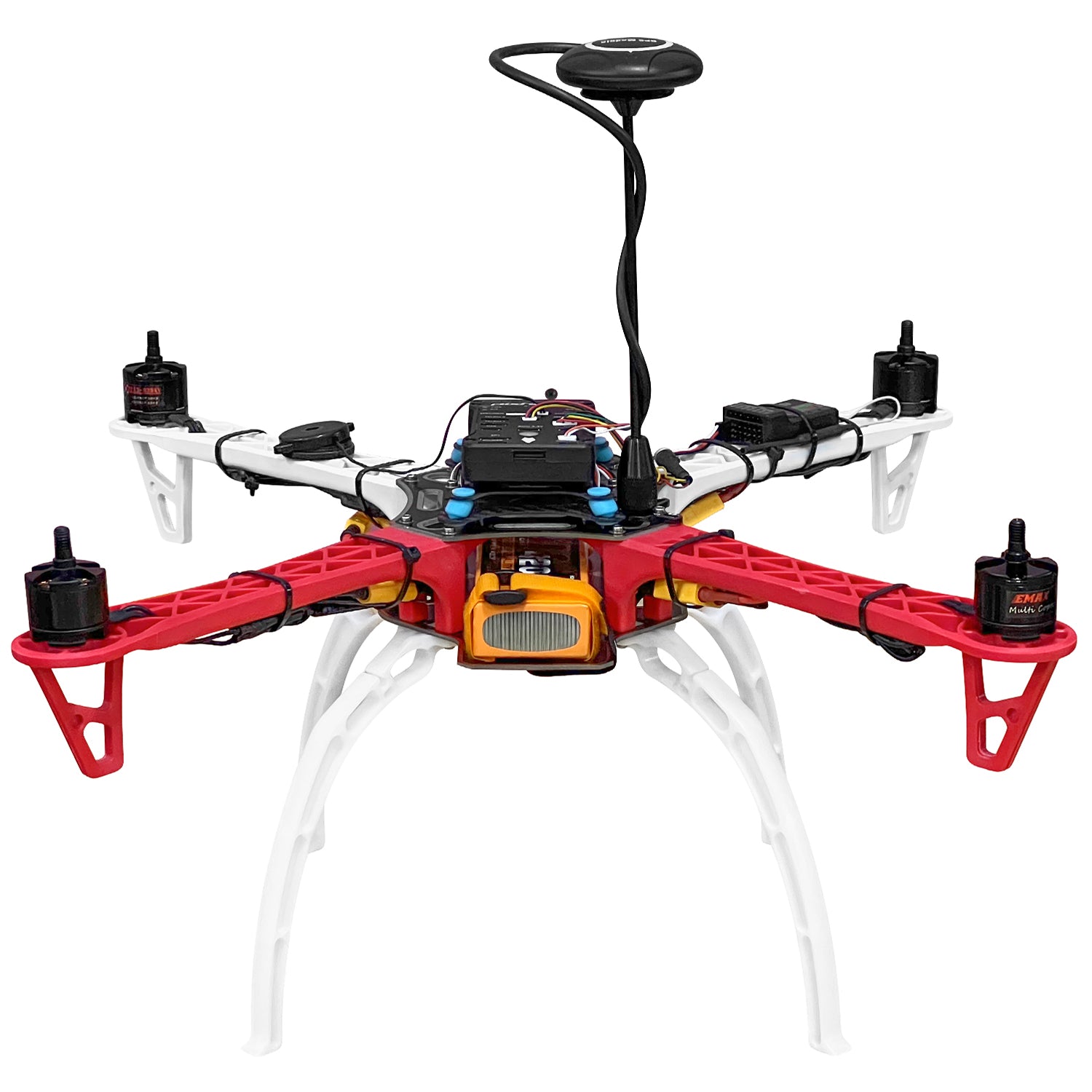

Recommended parts: Brushless motor:

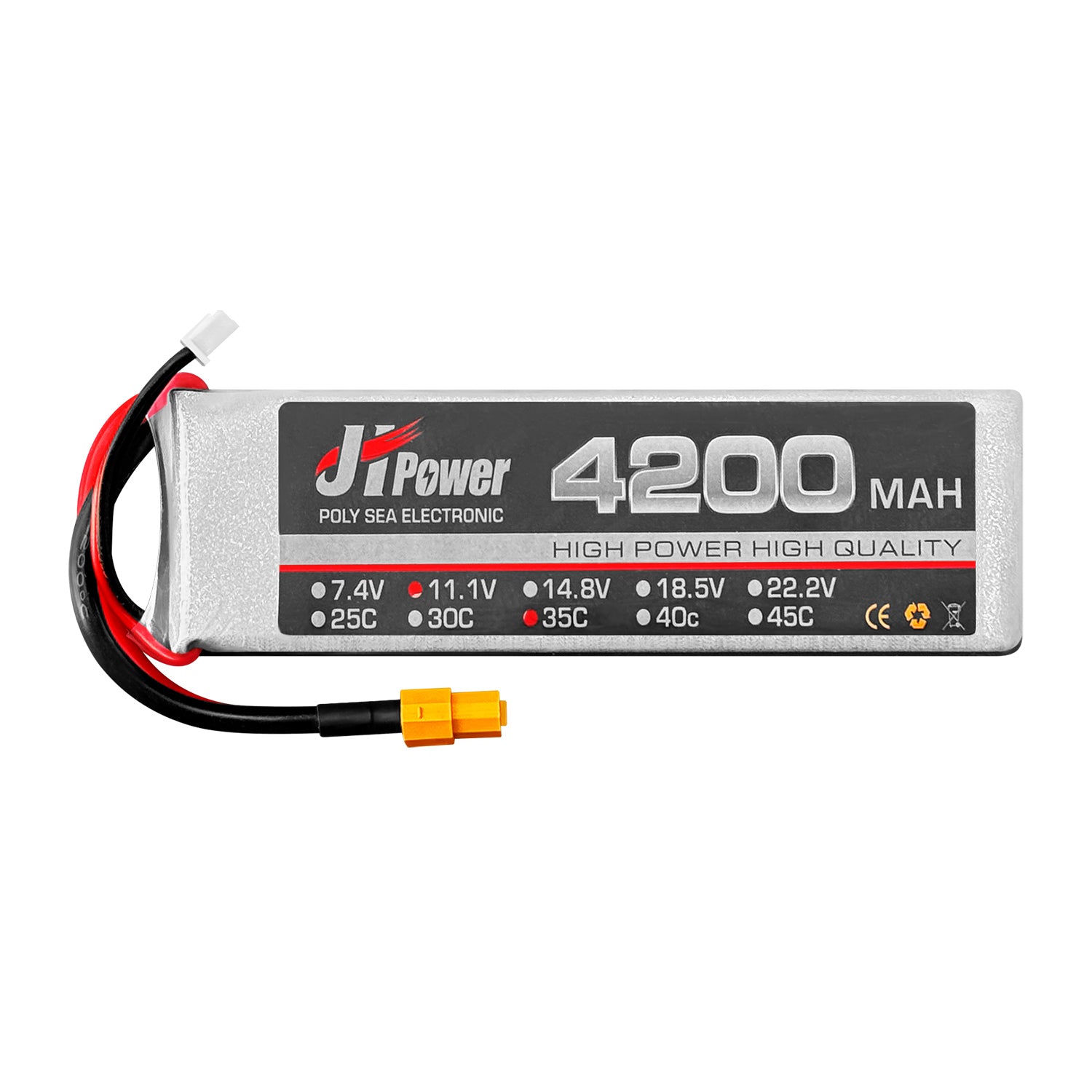

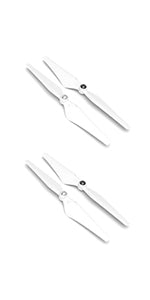

2208/2212/2213/2216 800-1100kv, ESC: 15~30A, liPo battery: 3-4S 1800-4500mAh, propeller: 8045/9450/1045





FAQ
1. If I choose the pre-solderedversion, do I still need to use a soldering iron?
No. The pre-soldered boards already have the plugs soldered on, you just need to insert the XT60 plugs with ESCs.
2. Where can I find the video andinstructions?
You can find the instructions and videos inside the package.
Note: Both the videos and instructions are in English.
3. Does it contain the requiredscrews?
It contains all the required screws, including 8pcs M3*7 (for mounting the motor), 24pcs M2.5*6 (for fixing the arm), 8pcs M2.5*8 (for mounting the bracket).

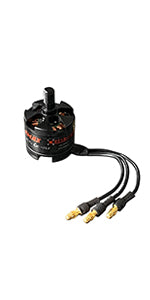

4. What kind of motor does itneed?

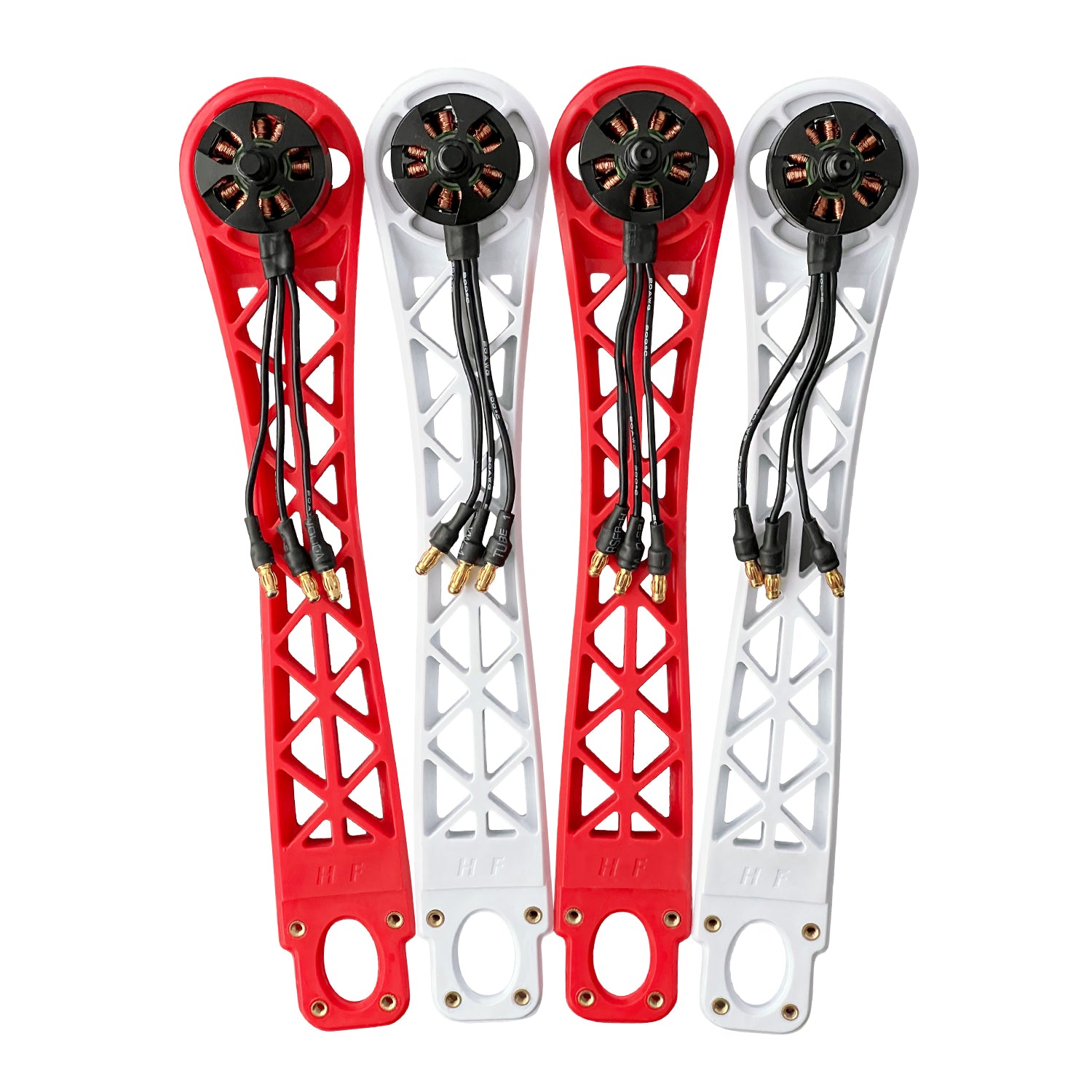

It requires a motor hole spacing of 16mm and 19mm, see pictures. This rack fits most 22 series brushless motors.
